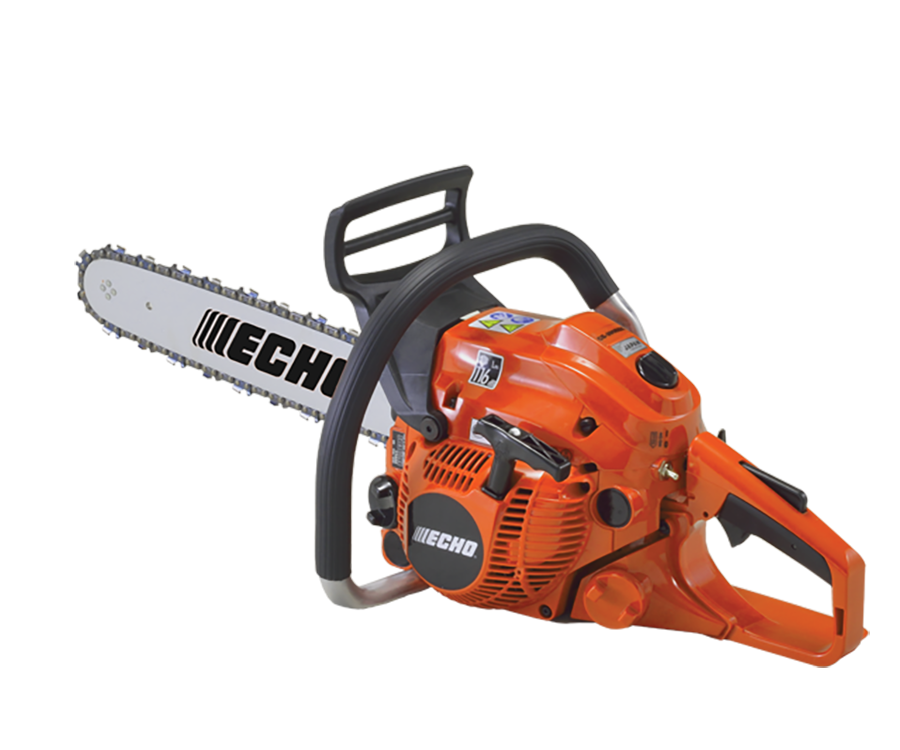

CS-390ESX

Balance and power. Professional rear handle petrol chain saw you can depend on.

CS-390ESX
Scroll
scroll

Balance and power. Professional rear handle petrol chain saw.

Inboard clutch.

Inboard clutch.

The inboard clutch increases maneuverability by allowing the body to be extra compact and slim.

Gforce dust free.

Gforce dust free.

Featuring ECHO's patented G-FORCE air cleaner system & large air filter.

Anti icing system.

Anti icing system.

In winter simply slide to the left to redirect heat and prevent icing.

Best Features.

Power to weight ratio

Super light-weight design with exceptional power.

Ergonomics

Designed to maximise efficiency and comfort.

Easy start engine

ECHO’s patented system for effortless starting.

Product Details.

Engine displacement (cm³) 38.4
Output (kw) 2.32
Output (ps) 3.01
Dry Weight (kg) 4.5
Fuel tank capacity (ml) 420
Chain Oil Tank Capacity (ml) 3
Fuel Consumption At Maximum Engine Power (L/h) 1.17
Ignition System CDI
Start Assist System ES-start
Chain Brake Inertia
Choke w/ Automatic Fast Idle Release Yes
Chain Tensioner Front
Saw Chain Pitch (inch) 5.25
Guide Bar Gauge (inch) 0.050(0.058)
Applicable Bar Length (cm/inch) 1 33, 38 / 13, 15
Sound pressure level (dB(A)) 101.9
Sound power level (dB(A)) 113.1
CO² (g/kW・h) 2 855
Vibration Front handle/Rear handle (m/s²) 4.7 / 5.0
1
Not all lengths available in every country. Check with your local dealer.
2
This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
