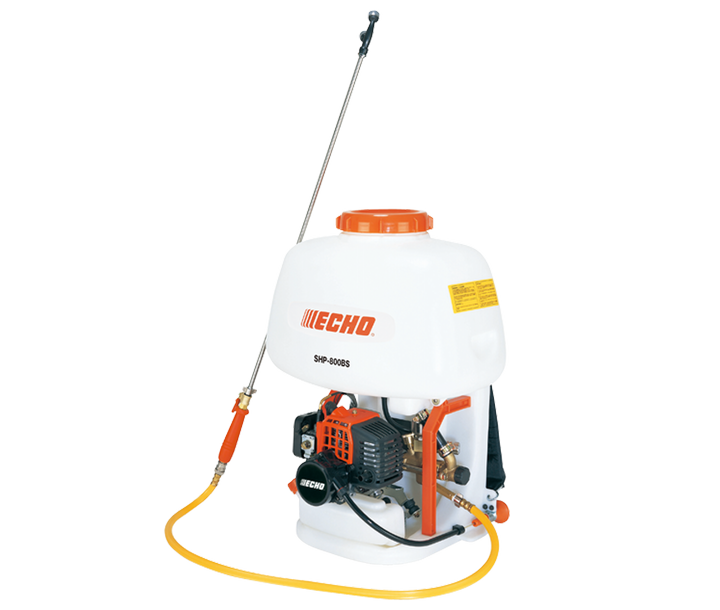

SHP-800

Small and lightweight high performance, professional chemical sprayer with great power to weight ratio.

SHP-800
Scroll
scroll

With 25L tank capacity and weighing just 9.0kg the ECHO SHP-800 is the perfect sprayer for long arduous jobs.

Professional engine

Professional engine

The 22.8 cm³ professional-grade, 2 cylinder engine generates extended spraying reach.

Unique circulation carburettor

Unique circulation carburettor

Unique circulation carburettor allows automatic fuel return for longer maintenance interval.

Double acting pump

Double acting pump

Double acting pump with air chamber for stable and controlled spray.

Best Features.

Powerful

Features one of ECHO’s most powerful engines.

Ergonomics

Designed to maximise efficiency and comfort.

Ease of Use

Power on and get to work. Intuitive controls and features make your job a breeze.

Product Details.

Engine displacement (cm³) 22.8
Output (kw) 1.14
Output (ps) 1.01
Dry Weight (kg) 9.0
Fuel tank capacity (ml) 1150
Fuel Consumption At Maximum Engine Power (L/h) 1.11
Chemical Tank Capacity Nominal Volume (l) 25
Carburettor Diaphragm
Pump Type Piston
Pump Maximum Pressure (kgf / cm²) 25.0
Pump Water absorption (L / min) 5.8
