SRM-22GES/U

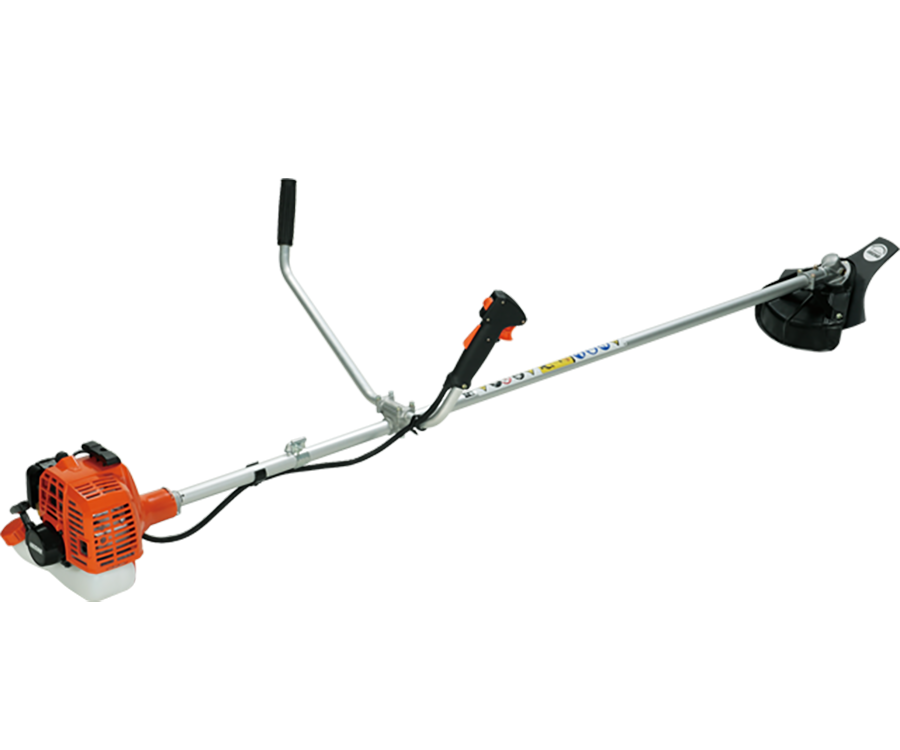

The 21.2cm³ ECHO SRM-22GES U handle trimmer is a high-performance two-stroke brushcutter.

SRM-22GES/U
Scroll
scroll

High performance with ES-Start for effortess starting and designed to maximise efficiency. The ECHO SRM-22GES/U is a light weight and highly maneuverable U handle brushcutter witha 21.2cm³ professional grade engine. It is the ideal choice for small to medium sized professional jobs.

Easy starting and light weight.

Easy starting and light weight.

Equipped with ECHO's ES start technology for easy starting with a lightweight, ergonomic frame, you'll get to work fast and power through jobs without tiring.

U handle.

U handle.

The U handle design is ideal for professional work. Clip into the Ergo Pro Harness for the ultimate in comfort. With the unit's weight supported and a consistent range of movement, big jobs can be tackled effortlessly.

3 cutter metal blade.

3 cutter metal blade.

Compatible with the ECHO 3 cutter metal blade for tackling reeds, saplings and branches.

Best Features.

Lightweight

Engineered to weigh less whilst retaining robust durability.

Ergonomics

Designed to maximise efficiency and comfort.

Easy start engine

ECHO’s patented system for effortless starting.

Product Details.

Engine displacement (cm³) 21.2
Output (kw) 1.07
Output (ps) 1.31
Dry Weight (kg) 4.8
Fuel tank capacity (l) 0.440
Fuel Consumption At Maximum Engine Power (L/h) 1.02
Carburettor Diaphragm
Start Assist System ES-start
Drive shaft diameter (mm) 6.15
Main pipe diameter (mm) 25.0
Gear reduction ratio 1.4
Standardised Nylon Head G138 502
Standardised Nylon Head (Item Number) X047-000570
Standardised Metal Blade 3-cutter metal blade
Standardised Metal Blade (Item Number) X405-000011
Vibration Left handle/Right handle (m/s) Metal Blade 3.1 / 3.1
Vibration Left handle/Right handle (m/s) Nylon head 4.3 / 3.2
Sound power level (dB(A)) Blade/Nylon head 99 / 101
Sound pressure level (dB(A)) Blade/Nylon head 89.6 / 91.2
