It has a lightweight gearcase, a light and durable cutter blade assembly and easy one-handed blade angle adjustment.
HCA-236ES-LW

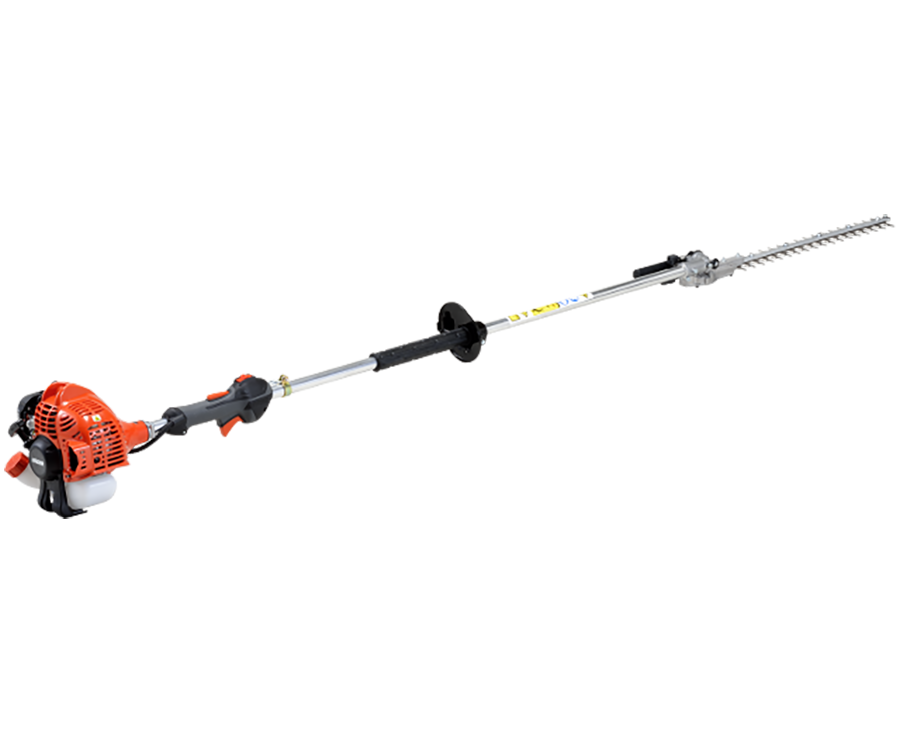

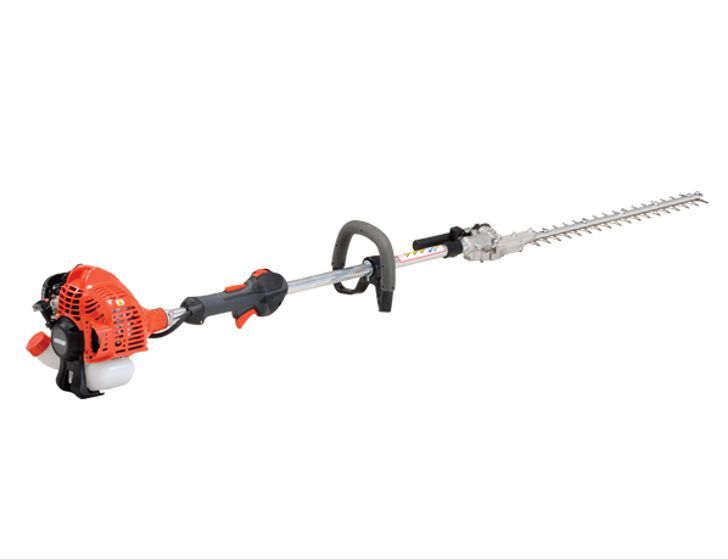

Ultra lightweight, professional long-reach articulating hedge trimmer.
Scroll

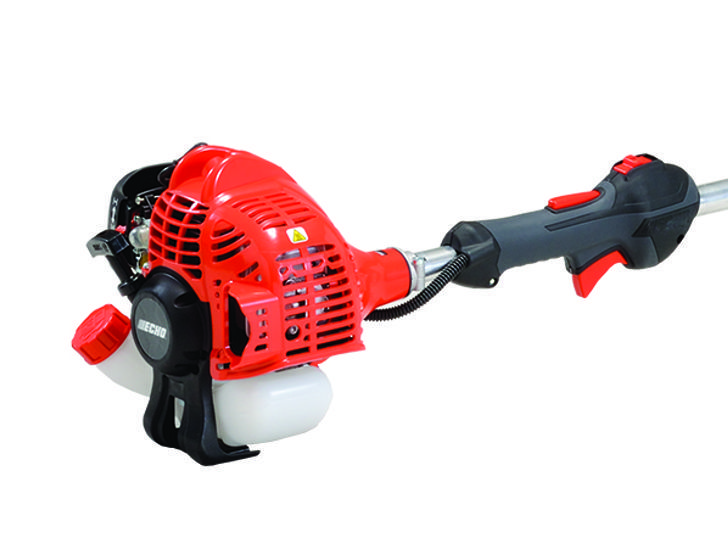

Professional engine
Featuring a professional grade 21.2 cm³ petrol engine for effortless trimming.
Compact design
Designed to be lightweight and ergonomic with perfect balance to maximise precision and minimise operator fatigue.
Adjustment system
The adjustment system enables the 519mm cutter to be rotated through 90°- it’s ideal for trimming tall and wide hedges.
Best Features.
Clean Finishing
Designed for clean and precise cutting.
Ergonomics
Designed to maximise efficiency and comfort.
Easy start engine
ECHO’s patented system for effortless starting.
Product Details.
| Engine displacement (cm³) | 21.2 |
|---|---|
| Output (kw) | 0.7 |
| Output (ps) | 1.0 |
| Dry Weight (kg) | 6.2 |
| Overall Length (mm) | 2407 |
| Fuel Tank Capacity (ml) | 440 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.45 |
| Start Assist System | ES-start |
| Cutter Type | Double |
| Cutting Length (mm) | 519 |
| Cutter Pitch (mm) | 30 |
| Cutter Clearance | Adjustable |
| Stroke Rate (cuts/min) | 3900 |
| Vibration Front handle/Rear handle (m/s²) | 4.1 / 3.7 |
| Sound pressure level (dB(A)) | 95.5 |
| Sound power level (dB(A)) | 106.7 |
| CO² (g/kW・h) 1 | 1180 |
- 1
- This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
