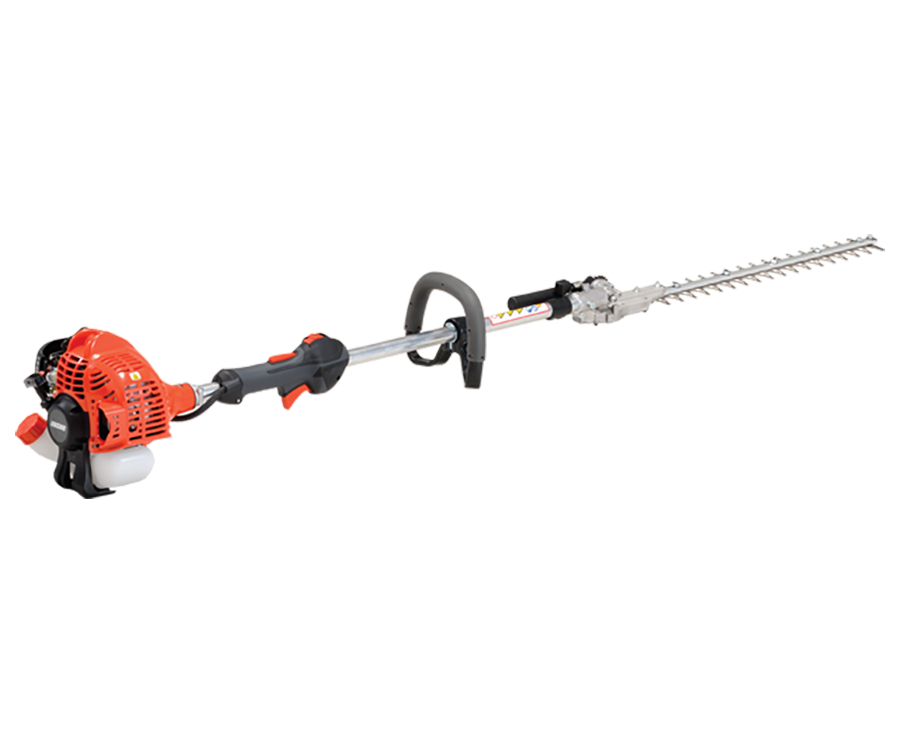

HCAS-236ES-LW

Ultra lightweight, professional short-reach articulating hedge trimmer.

HCAS-236ES-LW
Scroll
scroll

It has a lightweight gearcase, a light and durable cutter blade assembly and easy one-handed blade angle adjustment.

Professional engine

Professional engine

Featuring a professional grade 21.2 cm³ petrol engine for effortless trimming.

Compact design

Compact design

Designed to be lightweight and ergonomic with perfect balance to maximise precision and minimise operator fatigue. Short reach shaft provides ease of use during operation.

Adjustment system

Adjustment system

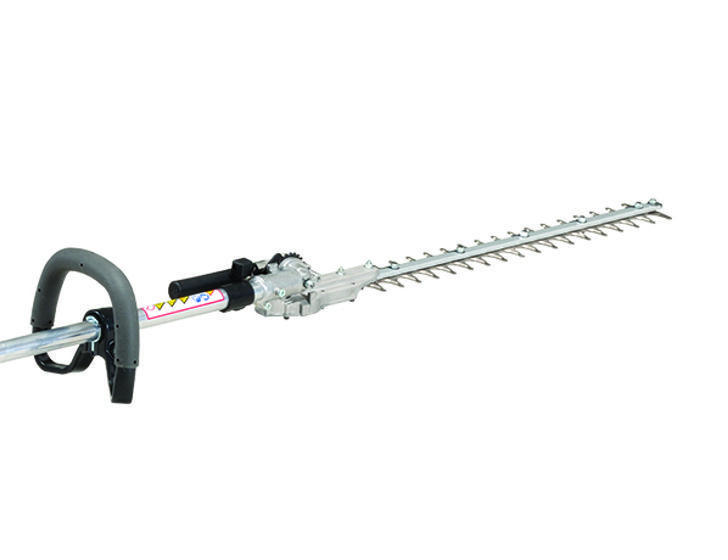

The adjustment system enables the 519mm cutter to be rotated through 90°- it’s ideal for trimming tall and wide hedges.

Best Features.

Clean Finishing

Designed for clean and precise cutting.

Ergonomics

Designed to maximise efficiency and comfort.

Easy start engine

ECHO’s patented system for effortless starting.

Product Details.

Engine displacement (cm³) 21.2
Output (kw) 0.7
Output (ps) 1.0
Dry Weight (kg) 5.9
Overall Length (mm) 1749
Fuel tank capacity (ml) 440
Fuel Consumption At Maximum Engine Power (L/h) 0.45
Start Assist System ES-start
Cutter Type Double
Cutting Length (mm) 519
Cutter Pitch (mm) 30
Cutter Clearance Adjustable
Stroke Rate (cuts/min) 3,9
Vibration Front handle/Rear handle (m/s²) 4.5 / 7.3
Sound pressure level (dB(A)) 94.3
Sound power level (dB(A)) 106.2
CO² (g/kW・h) 1 1180
1
This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
