Short reach professional articulating shafted hedge trimmer provides ease of use with precise trimming.

Where to buy

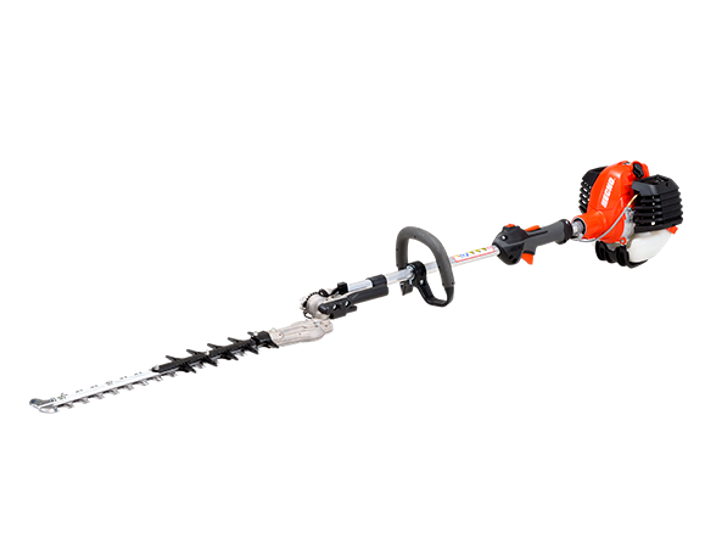

The ECHO HCAS-2620ES-HD is a professional grade, short reach articulating hedge trimmer weighing just 6.2kg with ergonomic and balanced construction. Featuring a heavy duty air filter to massively reduce the need for maintenance, ECHO's ES-Start system for effortless starting and easy one-handed blade angle adjustment.

Professional engine

Professional engine

25.4 cm³ professional-grade, 2 stroke engine provides power and high durability.

Light weight cutter blade

Light weight cutter blade

Featuring a light weight cutter blade with 3 sharp edges for sharp and clean finishing. The wider pitch blunt increases safety alongside the tip guard that prevents blade contact with fences or buildings.

Adjustment system

Adjustment system

The adjustment system enables the blade angle to be rotated through 135° only using one hand.

Best Features.

Clean Finishing

Designed for clean and precise cutting.


Designed to maximise efficiency and comfort.

Ease of Use

Power on and get to work. Intuitive controls and features make your job a breeze.

Product Details.

CO² (g/kW・h) 1 998
Sound power level (dB(A)) 110.3
Sound pressure level (dB(A)) 96.5
Stroke Rate (cuts/min) 5,000
Vibration Front handle/Rear handle (m/s²) 8.1 / 9.4
Cutter Clearance Adjustment-free
Cutter Pitch (mm) 35
Cutter Type Double
Cutting Length (mm) 536
Dry Weight (kg) 6.3
Engine displacement (cm³) 25.4
Fuel Consumption At Maximum Engine Power (L/h) 0.61
Fuel tank capacity (l) 0.60
Output (kw) 1.0
Output (ps) 1.4
Overall Length (mm) 1784
Start Assist System ES-Start
This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
